Hi

Can you please help me to manage parameter units when using a Phoenix model (in Phoenix 6.4)? When I run a Phoenix model e.g. 1 Comp extravascular model, units of Ka are displayed in the output (Theta table) but units of V and Cl are not displayed. Time and dose units are defined but I cannot find a way to define dose units. Why?

Thanks a lot for your help

Celine

2

Hi Celine, can you post your project fle for us to look at, since it sounds like you have mapped the required information?

Simon.

3

Hi Simon

Yes, please find it attached.

Thanks

Céline

PK COP Case1.phxproj (1.28 MB)

4

Hi Celine, this is a relatively easy fix. The issue (qc16370) is that the internal dose sheet of a Phoenix model object has no place to specify units, however if you create a sheet and then ‘publish’ it; then a copy of that worksheet is made in the data folder where you can then add units.

The source model object is already pointing to this worksheet in the data folder so you can simply re-run. Assuming your dose was in ng I have updated ‘Model 5x once’ in the attached project.

Simon.PK COP Case1_doseUnitsSet.phxproj (1.29 MB)

internal_dosing.jpg522×226 52.5 KB

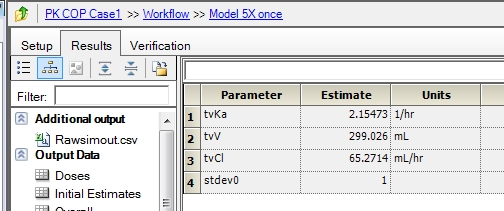

internal_dosing_fixed.jpg504×211 60.2 KB

5

Thank you so much Simon for your quick reply! This is working now.

Kind regards

Céline
